test_hardware_components::TestSystemCommandModes Class Reference
Inheritance diagram for test_hardware_components::TestSystemCommandModes:
Inheritance graph
[legend]

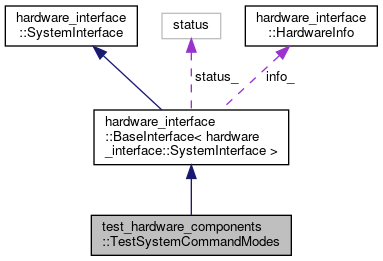

Collaboration diagram for test_hardware_components::TestSystemCommandModes:
Collaboration graph
[legend]

Public Member Functions

hardware_interface::return_type configure (const hardware_interface::HardwareInfo &system_info) override
 Configuration of the system from data parsed from the robot's URDF. More...

std::vector< hardware_interface::StateInterfaceexport_state_interfaces () override
 Exports all state interfaces for this system. More...

std::vector< hardware_interface::CommandInterfaceexport_command_interfaces () override
 Exports all command interfaces for this system. More...

hardware_interface::return_type start () override
 Start exchange data with the hardware. More...

hardware_interface::return_type stop () override
 Stop exchange data with the hardware. More...

hardware_interface::return_type read () override
 Read the current state values from the actuators and sensors within the system. More...

hardware_interface::return_type write () override
 Write the current command values to the actuator within the system. More...

hardware_interface::return_type prepare_command_mode_switch (const std::vector< std::string > &start_interfaces, const std::vector< std::string > &stop_interfaces) override
 Prepare for a new command interface switch. More...

hardware_interface::return_type perform_command_mode_switch (const std::vector< std::string > &start_interfaces, const std::vector< std::string > &) override

- Public Member Functions inherited from hardware_interface::BaseInterface< hardware_interface::SystemInterface >
return_type configure (const HardwareInfo &info) override

return_type configure_default (const HardwareInfo &info)

std::string get_name () const final

status get_status () const final


Additional Inherited Members

- Protected Attributes inherited from hardware_interface::BaseInterface< hardware_interface::SystemInterface >
HardwareInfo info_

status status_


Member Function Documentation

◆ configure()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::configure ( const hardware_interface::HardwareInfo system_info)
inlineoverridevirtual

Configuration of the system from data parsed from the robot's URDF.

Parameters
[in]system_infostructure with data from URDF.
Returns
return_type::OK if required data are provided and can be parsed, return_type::ERROR otherwise.

Implements hardware_interface::SystemInterface.

◆ export_command_interfaces()

std::vector<hardware_interface::CommandInterface> test_hardware_components::TestSystemCommandModes::export_command_interfaces ( )
inlineoverridevirtual

Exports all command interfaces for this system.

The command interfaces have to be created and transferred according to the system info passed in for the configuration.

Note the ownership over the state interfaces is transferred to the caller.

Returns
vector of command interfaces

Implements hardware_interface::SystemInterface.

◆ export_state_interfaces()

std::vector<hardware_interface::StateInterface> test_hardware_components::TestSystemCommandModes::export_state_interfaces ( )
inlineoverridevirtual

Exports all state interfaces for this system.

The state interfaces have to be created and transferred according to the system info passed in for the configuration.

Note the ownership over the state interfaces is transferred to the caller.

Returns
vector of state interfaces

Implements hardware_interface::SystemInterface.

◆ perform_command_mode_switch()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::perform_command_mode_switch ( const std::vector< std::string > &  ,
const std::vector< std::string > &
)
inlineoverridevirtual

Perform the mode-switching for the new command interface combination.

Note
This is part of the realtime update loop, and should be fast.
All starting and stopping interface keys are passed to all components, so the function should return return_type::OK by default when given interface keys not relevant for this component.
Parameters
[in]start_interfacesvector of string identifiers for the command interfaces starting.
[in]stop_interfacesvector of string identifiers for the command interfacs stopping.
Returns
return_type::OK if the new command interface combination can be switched to, or if the interface key is not relevant to this system. Returns return_type::ERROR otherwise.

Reimplemented from hardware_interface::SystemInterface.

◆ prepare_command_mode_switch()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::prepare_command_mode_switch ( const std::vector< std::string > &  ,
const std::vector< std::string > &
)
inlineoverridevirtual

Prepare for a new command interface switch.

Prepare for any mode-switching required by the new command interface combination.

Note
This is a non-realtime evaluation of whether a set of command interface claims are possible, and call to start preparing data structures for the upcoming switch that will occur.
All starting and stopping interface keys are passed to all components, so the function should return return_type::OK by default when given interface keys not relevant for this component.
Parameters
[in]start_interfacesvector of string identifiers for the command interfaces starting.
[in]stop_interfacesvector of string identifiers for the command interfacs stopping.
Returns
return_type::OK if the new command interface combination can be prepared, or if the interface key is not relevant to this system. Returns return_type::ERROR otherwise.

Reimplemented from hardware_interface::SystemInterface.

◆ read()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::read ( )
inlineoverridevirtual

Read the current state values from the actuators and sensors within the system.

The data readings from the physical hardware has to be updated and reflected accordingly in the exported state interfaces. That is, the data pointed by the interfaces shall be updated.

Returns
return_type::OK if the read was successful, return_type::ERROR otherwise.

Implements hardware_interface::SystemInterface.

◆ start()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::start ( )
inlineoverridevirtual

Start exchange data with the hardware.

Returns
return_type:OK if everything worked as expected, return_type::ERROR otherwise.

Implements hardware_interface::SystemInterface.

◆ stop()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::stop ( )
inlineoverridevirtual

Stop exchange data with the hardware.

Returns
return_type:OK if everything worked as expected, return_type::ERROR otherwise.

Implements hardware_interface::SystemInterface.

◆ write()

hardware_interface::return_type test_hardware_components::TestSystemCommandModes::write ( )
inlineoverridevirtual

Write the current command values to the actuator within the system.

The physical hardware shall be updated with the latest value from the exported command interfaces.

Returns
return_type::OK if the read was successful, return_type::ERROR otherwise.

Implements hardware_interface::SystemInterface.


The documentation for this class was generated from the following file:
